Air Cups StanceParts - front only

aircaps_2

598,00 €

Lowest price in the period of 30 days before current promotion:

The lowest price of the product in day

Lowest price in the last 30 days

More info

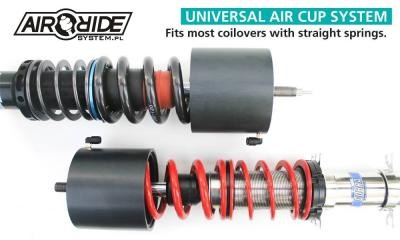

Stanceparts AirCups - Pneumatic Lift System

Price per set on the front axle - 2 pieces



Coilover requirements

The air cups - PLS - will fit any brand coilovers, as long as they meet the requirements. Make sure the dimensions shown on the images match your coilover, we strongly recommend to measure with a caliper. If your coilovers have other dimensions, please contact us.

• The outside diameter of the spring must be less than 89mm.
• The inside diameter of the spring must be more than 61 mm.
• Available for 5 different coilover shaft diameters: 12,5mm, 14mm, 15mm, 20mm and 22mm. Custom diameters on request.


Straight springs

The system will only fit coilovers with straight springs as shown in the right figure. The system will not fit on coilovers with ”barrel” springs as shown in the left figure. If you have ”barrel” springs, there is an option to fit straight springs.


How does it work?

The air cup is mounted on the top of the spring and replaces the top hat which is originally mounted on the spring. When you put pressure on the air cups the car will raise 50mm. Air cup suspension is a perfect system to drive your (extremely) lowered car across obstacles without any risk of ground contact.
The air cup lift system does not affect the ride quality and performance of your coilovers.


Dimensions:

The PLS will take up a certain space depending on the vehicle. The PLS takes only 18mm of space in the lowest position, often less than your original top hat (in many cases around 20mm). At best, you win some space when installing the air cups. In some cases you should assemble one or more spacers (which are supplied with your order). This will take up around 6 to 12 mm in height. The diameter of the air cup is 110 mm.




Sets are made abroad, so before ordering ask about the waiting time. We do not send cash on delivery!




https://www.youtube.com/watch?v=evLvO1NAoCE

Included:
- 2 caps PLS
- Vases 6mm
- tee
