Compressors  VIAIR 380C Chrome - DUAL

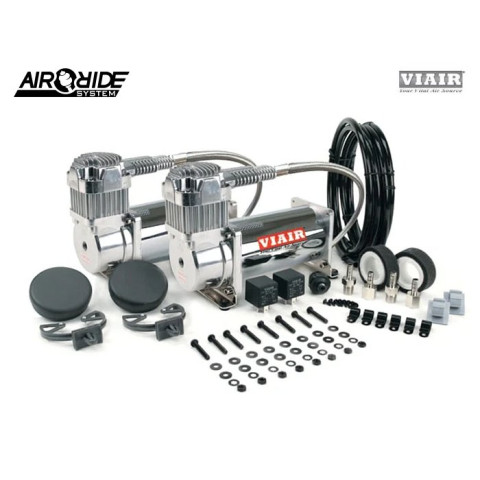

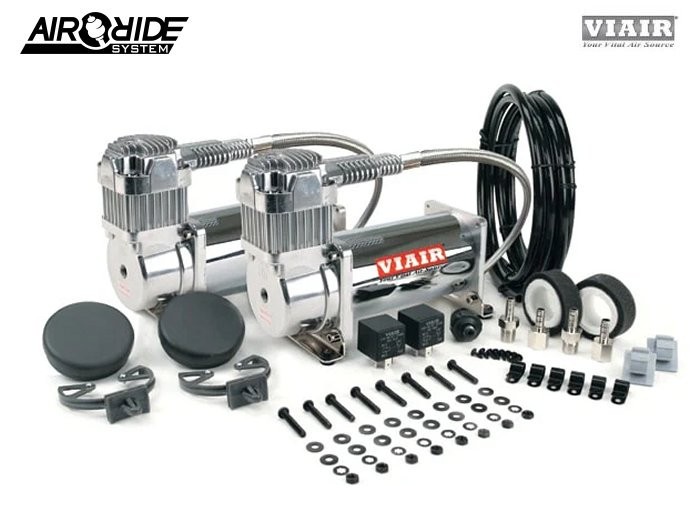

The VIAIR 380C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features two 12-volt Pewter, Chrome or Stealth Black 380C air compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch. Each 380C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.

Features:
- (2) 380C (Chrome, Pewter or Stealth Black) Air Compressors
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (2) Leader Hose Clips
- (6) Air Line Clips with Included Hardware
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (2) 40-Amp Relays
- (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- Air Line (For Remote Mount Filter Installation)

Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Max. Amp Draw: 44 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9"L x 4"W x 6.75"H (Each Unit)
- Net Weight: 17.50 lbs.

User Manual
Dimensional Drawings
Wiring Diagram




2.5 Gallon TankFill Rate
0 to 200 PSI3 min. 13 sec. (± 10 sec.)
165 to 200 PSI53 sec. (± 05 sec.)
5.0 Gallon TankFill Rate
0 to 200 PSI7 min. 11 sec. (± 15 sec.)
165 to 200 PSI2 min. 06 sec. (± 10 sec.)


Warranty 12 months

Breaking sticker with the serial number of the compressor is void the warranty.

Producer: VIAIR
USA - https://viaircorp.com/pages/contact

Importer: BEST LEVEL Katarzyna Janecka


Manual: https://viaircorp.com/cdn/shop/files/User_Manual_38033_48043_Manual_R2-020221.pdf?v=18014159198691979343

Information and safety instructions:  www.mapet-tuning.com/GPSR/GPSR_airride.pdf
