AirForce Suspension Digital - RC1 - by pressure

The RC1 is a pressure based digital management system that features 4 user definable preset heights and individual four corner air spring control. The wireless digital controller displays all four bag pressures, as well as the tank pressure. The controller uses an OLED adjustable colour display, as well as a wireless key fob for quick and easy activation of the 4 ride height presets as well as a rise on start feature.

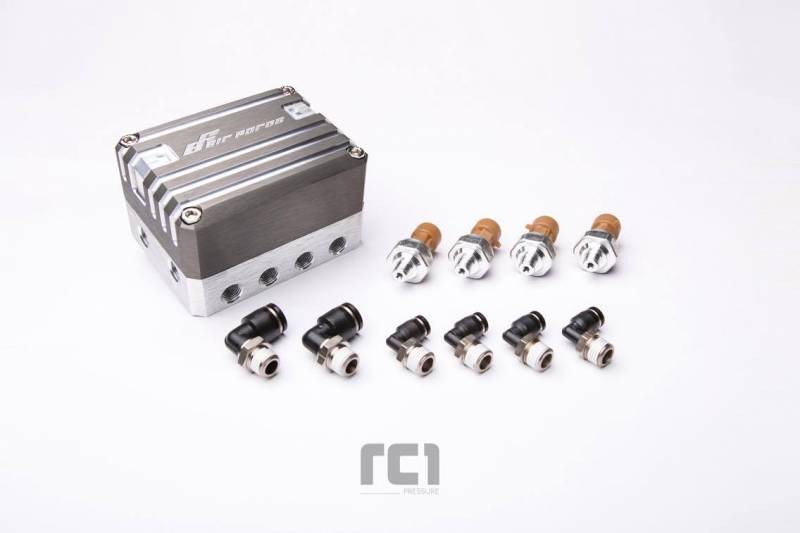

AFS RC1 digital management utilizes a serviceable billet aluminium solenoid manifold and ECU which makes for simple installation using the supplied pre-wired looms.


Description:

Product Description:

1. Speed: (It’s for adjusting interval time of solenoid valve)
Options: 1~20 levels (Default: 10 level). 1->20 levels (slow>fast)

2. Key on: ( It will set memory ride height automatically when ACC on)
Options: 1/2/3/4/OFF (Default: OFF) (Without inputting the signal of height sensor kit, the function is invalid)

3. AUTO: The computer will measure the ride height automatically when turns on this function.
If it’s not original setting (memory 1/2/3/4), the ride height will be adjusted to original setting ride height.

4. ADVANCE: (When turns on “AUTO” function, you can choose interval time to operate automatically)
Options: 10/20/30/60/120/180 (sec) (Default: 60 sec)
※ The 3rd and 4th options will be available with height sensor kit. ( Without inputting the signal of height
sensor kit, the function is invalid )

5. Compressor Detect: (Default: OFF) ON/OFF (when ACC on and operating the memory function or raising
up ride height manually, the pressure in air tank decreases more than 30PSI will start the compressor.
The compressor will stop automatically when the pressure is filled to the setup of Function 7.

6. Compressor Level: (Default: B) Options: A: 100 on- 150 off B: 135 on- 175 off C: 160 on- 200 off
(You can set the stopping pressure of pressure switch and stop pressure. This function will be available
when Acc on.) Protection Plan for compressor overload :
1. Working for 30 minutes.
2. Working for 35 minutes.
3. Working for 40 minutes.

When reaching the condition of OFF, the compressor will stop working.
When relaxing more than 5 minutes, the total working time returns to zero.

※ When working standard reaches “1” (Function 6-compressor level) Auto setup is B; if the original setup
is B then no need to change. If original setup is A, then no need to change.
※ When working standard reaches “2”, the setup need to be A no matter what the original setup is.
※ When working standard reaches “3”, need to turn off the compressor and restart it after 15 minutes break.
(the screen of remote will display countdown ) (Turns off ACC then turn on will not affect the action of
countdown)

P.S. When working standard reaches any item of 1/2/3 (7 compressor level), the manual
setup data will be deleted and will change to setup A: 100 on- 150 off


In the kit:

  • 1 x Wireless Controller.
  • 1 x Wireless Controller Car Charger.
  • 1 x Wireless Key Fob.
  • 1 x Wireless Remote Antenna.
  • 1 x Billet Aluminium Solenoid Manifold
  • 5 x Air Pressure Sensors.
  • 1 x Billet Aluminium ECU.
  • 1 x 5 Gallon Stainless Steel Tank.
  • 1 x Air Zenith or VIAIR Compressor.
  • 1 x Compressor Check Valve.
  • 4 x Compressor Isolation Mounts.
  • 1 x Compressor Relay.
  • 1 x Compressor Air Filter.
  • 1 x Compressor Leader Hose.
  • 1 x Air Tank Drain.
  • Air Tank Fixings.
  • 1 x Compressor to Tank fitting.
  • 1 x Tank to Manifold fitting.
  • 4 x Manifold to Airbag fittings (6mm).
  • (30m) 6mm Air Line.
  • 1 x 10mm Air Line.
  • 1 x 100A Maxi Fuse.
  • 1 x Maxi Fuse Holder.
  • 1 x ECU Wiring Multiplug.
  • 5mm Compressor Power Wire.
  • User Manual / Wiring Diagrams.
  • 1 year manufacturer warranty.

 Kit can be sold without Shocks with Bags or with it!


Sets imported after payment !!!

Delivery time is usually 10-20 days


WARNING! Before purchasing ask about delivery time!



Shocks avaliable for Cars:

<td colspan="9" height="18" bgcolo

ACURA
PART NO.MODELYEAR
AR-AC-01INTEGRA DA6  (RR EYE)89~93
AR-AC-02INTEGRA DA6  (RR FORK)89~93
AR-AC-03INTEGRA DC2  (RR EYE)93~01
AR-AC-04INTEGRA DC2  (RR FORK)93~01
AR-AC-05INTEGRA RSX DC501~06
AR-AC-06INTEGRA RSX DC505~UP
AR-AC-07LEGEND KA793~01
AR-AC-08TL04~08
AR-AC-09TL09~UP
AR-AC-10NSX NA190~05
AR-AC-11TSX CL904~08
AUDI
PART NO.MODELYEAR
AR-AU-01A3 8L (2WD) φ5096~03
AR-AU-02A3 MK2 HATCH 3D 8P1 (2WD) φ5003~UP
AR-AU-03A3 MK2 HATCH 3D 8P1 (2WD) φ5503~UP
AR-AU-04A3 MK2 HATCH 5D 8PA (2WD) φ5004~UP
AR-AU-05A3 MK2 HATCH 5D 8PA (2WD) φ5504~UP
AR-AU-06A3 CONVERTIBLE (2WD)08~UP
AR-AU-07A4 B6 (2WD)02~04
AR-AU-08A4 B6 AVANT01~04
AR-AU-09A4 B704~UP
AR-AU-10A4 B7 AVANT04~UP
AR-AU-11A4 B8 SEDAN (2WD)08~UP
AR-AU-12A4 B8 SEDAN (4WD)08~UP
AR-AU-13A5 COUPE (2WD)07~UP
AR-AU-14A5 COUPE (4WD)07~UP
AR-AU-15A5 SPORTBACK (2WD)09~UP
AR-AU-16A5 SPORTBACK (4WD)09~UP
AR-AU-17A5 CONVERTIBLE (2WD)09~UP
AR-AU-18A5 CONVERTIBLE (4WD)09~UP
AR-AU-19S4 B8 (4WD)08~UP
AR-AU-20TT (2WD) φ5098~06
AR-AU-21A1 4CYL11~UP
BMW
PART NO.MODELYEAR
AR-BM-03E 34 6/8 CYL OE φ51 FRT WELDING 87~95
AR-BM-04E 34 6/8 CYL OE φ55 FRT WELDING 87~95
AR-BM-05E 36 4/6 CYL90~98
AR-BM-06E 36 M394~98
AR-BM-07E 39 4/6/8 CYL excl. Wagon95~03
AR-BM-08E 39 M5  98~03
AR-BM-09E 46 4/6 CYL 98~05
AR-BM-10E 46 M300~UP
AR-BM-11E 60  4/6/8 CYL 03~UP
AR-BM-12E 60  M5 (Eelectronic self-leveling unavailable)05~10
AR-BM-13E 63 6/8 CYL04~UP
AR-BM-14E 64 6/8 CYL04~UP
AR-BM-15E 63 / E 64 M6 (Eelectronic self-leveling unavailable)04~UP
AR-BM-16E 65 6/8/12 CYL 01~08
AR-BM-17E 66 6/8/12 CYL01~08
AR-BM-18E 81 4/6 CYL 04~UP
AR-BM-19E 82 4/6 CYL 04~UP
AR-BM-20E 87 4/6 CYL 04~UP
AR-BM-21E 88 4/6 CYL 08~UP
AR-BM-22E 90  4/6 CYL 05~UP
AR-BM-23E 91  4/6 CYL05~UP
AR-BM-24E 92  4/6 CYL06~UP
AR-BM-25X6 XDRIVER 35I08~UP
AR-BM-26F10 (F18)10~UP
AR-BM-27F30 4/6/8 CYL11~UP
AR-BM-28F10 4WD11~UP
AR-BM-29E 38 6 CYL (NOT AIRSTRUT)95~02
AR-BM-30E 38 8 CYL (NOT AIRSTRUT)95~02
AR-BM-311M COUPE10~12
AR-BM-32F20 4/6 CYL10~UP
AR-BM-33F21 4/6 CYL11~UP
AR-BM-34F31 4/6 CYL11~UP
AR-BM-35F32 4/6 CYL13~UP
AR-BM-36F33 4/6 CYL13~UP
AR-BM-37F34 4/6 CYL13~UP
AR-BM-38E30 4/6 CYL OE φ51 Frt Welding82~92
AR-BM-39E30 4/6 CYL OE φ45 Frt Welding82~92
CHRYSLER
PART NO.MODELYEAR
AR-CR-01 300C RWD05~10
AR-CR-02 NEON94~00
AR-CR-03 300C RWD11~UP
DAIHATSU
PART NO.MODELYEAR
AR-DI-01MATERIA COO Rr: Non-ride height adjutable 06~UP
AR-DI-02MOVE L15002~06
AR-DI-03MOVE L17006~UP
AR-DI-04MOVE L17598~05
DODGE
PART NO.MODELYEAR
AR-DO-01CHARGER RWD06~10
AR-DO-02MAGNUM RWD05~08
AR-DO-03NEON99~05
AR-DO-04STEALTH (2WD)92~99
AR-DO-05STEALTH (4WD)92~99
AR-DO-06CHALLENGER RWD11~UP
AR-DO-07CHALLENGER RWD08~10
AR-DO-08CHARGER RWD11~UP
FORD
PART NO.MODELYEAR
AR-FO-01AZTEC95~98
AR-FO-02FOCUS C-MAX (2WD) φ51.503~UP
AR-FO-03FOCUS ST05~12
AR-FO-04LIATA94~98
AR-FO-05MAV01~07
AR-FO-06PROBE89~92
AR-FO-07PROBE93~97
AR-FO-08TELSTAR88~92
AR-FO-09TELSTAR93~97
AR-FO-10TIERRA98~UP
AR-FO-11FIESTA08~UP
AR-FO-12MONDEO07~UP
HYUNDAI
PART NO.MODELYEAR
AR-HY-01ACCENT00~05
AR-HY-02COUPE97~01
AR-HY-03COUPE02~UP
AR-HY-04ELANTRA96~00
AR-HY-05ELANTRA01~UP
AR-HY-06EQUUS00~UP
AR-HY-09MATRIX01~10
AR-HY-10TG  GRANDEUR05~UP
AR-HY-11TIBURON96~01
AR-HY-12TIBURON03~UP
AR-HY-13TUCSON04~09
AR-HY-14GENESIS COUPE08~10
AR-HY-15GENESIS COUPE11~UP
AR-HY-16ELANTRA/AVANTE TYPE111~UP
AR-HY-17ELANTRA/AVANTE TYPE211~UP
AR-HY-18GENESIS SEDAN11~UP
HONDA
PART NO.MODELYEAR
AR-HN-01ACCORD CU 1/2  4/6 CYL08~12
AR-HN-02ACCORD CA 1/2/3/4/5/6 CYL85~89
AR-HN-03ACCORD CB 1/2/3/489~93
AR-HN-04ACCORD CD 1/2/3/493~97
AR-HN-05ACCORD CG 1/2/3 (USA)98~02
AR-HN-06ACCORD CF 3/4/5 (JAPAN)97~02
AR-HN-07ACCORD CL 1/2/3 (JAPAN)97~02
AR-HN-08ACCORD CL 7/8/9 (USA)02~08
AR-HN-09CIVIC EF CRX (RR EYE)89~91
AR-HN-10CIVIC EF CRX (RR FORK)89~91
AR-HN-11CIVIC EG (RR EYE)92~95
AR-HN-12CIVIC EG (RR FORK)92~95
AR-HN-13CIVIC EK96~00
AR-HN-14CIVIC ES1/2/3/ ET200~05
AR-HN-15CIVIC EP2/ EP301~05
AR-HN-16CIVIC FD106~11
AR-HN-17CIVIC TYPE-R FD207~11
AR-HN-19CIVIC TYPE-R FN207~11
AR-HN-19-1CIVIC FB4/FG3/FB2/FG4/FB612~UP
AR-HN-20CRV95~01
AR-HN-20-1CRV II02~06
AR-HN-21CRV07~UP
AR-HN-23FIT GD 1/2/3/401~07
AR-HN-24FIT GE 6/7/8/908~UP
AR-HN-25JAZZ01~07
AR-HN-26JAZZ08~UP
AR-HN-27LIFE JB 198~03
AR-HN-28LIFE JB 5/703~08
AR-HN-29ODYSSEY RA6-RA999~03
AR-HN-30ODYSSEY RB1/ RB2 (WISH BONE)03~08
AR-HN-31ODYSSEY RB3/RB4  (WISH BONE)08~UP
AR-HN-32PRELUDE BA4/5/787~91
AR-HN-33PRELUDE BA8/9  BB1/23/491~96
AR-HN-34PRELUDE BB5/6/7/896~01
AR-HN-35S2000 AP1/AP299~09
AR-HN-36STREAM RN1/2/3/4/500~06
AR-HN-37STREAM RN6/7/8/906~UP
AR-HN-38STEP WAGON RF801~05
AR-HN-39CITY08~UP
AR-HN-40STEP WAGON RF196~99
AR-HN-41STEP WAGON RG/RK11~UP
AR-HN-42ACCORD13~UP
AR-HN-43CRZ (ZF1)10~UP
INFINITI
PART NO.MODELYEAR
AR-IN-01INFINITI G35/G37/G37 COUPE (Rr FORK)06~UP
AR-IN-02INFINITI G35 2D/4D 02~06
AR-IN-03INFINITI M35 / M45 2WD (FUGA Y50) 04~09
AR-IN-04INFINITI M35 / M45 4WD (FUGA Y50)04~09
AR-IN-06INFINITI Q45(G50) FRONT TOP MOUNT: 116mm89~97
AR-IN-07Q45 (Y33) WELDING97~01
AR-IN-08Q45 (F50) CIMA (WELDING)01~08
KIA
PART NO.MODELYEAR
AR-KI-01K5 11~UP
LANCIA
PART NO.MODELYEAR
AR-LA-01 DELTA EVOLUZIONE90~95
LEXUS
PART NO.MODELYEAR
AR-LE-01ES 300 (TYPE 1)01~06
AR-LE-02ES 300 (TYPE 2)01~06
AR-LE-03GS 300 (JZS 147)93~97
AR-LE-04GS 300 (JZS 161)98~05
AR-LE-05GS 300/35006~UP
AR-LE-05-1GS 43006~UP
AR-LE-06IS 200/300 (GXE10/JCE10)98~05
AR-LE-07IS 250/350 (GSE20/GSE21)05~12
AR-LE-08LS 400 (UCF 10/11)89~94
AR-LE-09LS 400 (UCF 20)94~00
AR-LE-10LS 430 (UCF 30/31)00~06
AR-LE-10-1LS 46007~UP
AR-LE-11RX 330 (4WD)03~09
AR-LE-12SC 300/400 SOARER91~00
AR-LE-13SC 300/400/43001~10
AR-LE-14IS 250/300/300h13~UP
AR-LE-15ES12~UP
MAZDA
PART NO.MODELYEAR
AR-MA-01309~UP
AR-MA-023 (NON 2.3 MPS)03~09
AR-MA-033 (2.3 MPS)03~09
AR-MA-0432398~03
AR-MA-05323 (2WD)94~98
AR-MA-06323 LANTIS94~98
AR-MA-07323 BF (4WD) GTX89~94
AR-MA-08323 BG (4WD) GTX89~94
AR-MA-09323 BG (4WD) GTR87~89
AR-MA-10505~10
AR-MA-116 (NON MPS)02~08
AR-MA-126 (NON MPS)08~12
AR-MA-1362687~92
AR-MA-1462693~97
AR-MA-1562698~02
AR-MA-16CONSMO 13B / 20B ROTARY90~96
AR-MA-17MILLENIA93~03
AR-MA-18MX-391~97
AR-MA-19MX-5 MIATA / ROADSTER89~98
AR-MA-20MX-5 MIATA / ROADSTER98~05
AR-MA-21MX-688~92
AR-MA-22MX-692~98
AR-MA-23PREMACY98~03
AR-MA-24RX7 FC3S85~91
AR-MA-25RX7 FD3S91~02
AR-MA-26RX8 SE3P03~08
AR-MA-276 (ATENZA)12~UP
MERCEDES BENZ
PART NO.MODELYEAR
AR-ME-01E CLASS W210 4/5/6 CYL95~02
AR-ME-02W140  S320 (NO STRUTS)91~98
AR-ME-03C CLASS W204 4/6/8 CYL07~UP
AR-ME-04E CLASS COUPE C207 4/6/8 CYL09~UP
AR-ME-05CLK C208 4/5/6 CYL97~02
AR-ME-06E CLASS W211 4/5/6/8 CYL 02~09
AR-ME-08CLS C219 6/8 CYL04~11
AR-ME-09E CLASS W212 4/6/8 CYL09~UP
AR-ME-10C218 CLS 4/6/8 CYL11~UP
MINI
PART NO.MODELYEAR
AR-MI-01MINI COOPER (R50)01~06
AR-MI-02MINI COOPER (R53)01~06
AR-MI-03MINI COOPER S (R53)01~06
AR-MI-04MINI COOPER (R55)07~UP
AR-MI-05MINI COOPER (R56)07~UP
AR-MI-06MINI COOPER S (R56)07~UP
AR-MI-09COOPER SD (R60) COUNTRYMAN (2WD)10~UP
MITSUBISHI
PART NO.MODELYEAR
AR-MT-013000 GT (2WD)92~96
AR-MT-023000 GT (4WD) / GTO92~96
AR-MT-033000 GT00~UP
AR-MT-04ECLIPSE NA (2WD)89~95
AR-MT-05ECLIPSE TURBO (4WD)89~95
AR-MT-06ECLIPSE95~00
AR-MT-07ECLIPSE00~06
AR-MT-08ECLIPSE06~UP
AR-MT-09EVO1-392~96
AR-MT-10EVO4-697~01
AR-MT-11EVO7-902~08
AR-MT-12EVO1008~UP
AR-MT-13FTO94~97
AR-MT-14GALANT VR4 MCPHERSON 88~92
AR-MT-15GALANT (USA) MCPHERSON 99~03
AR-MT-16GALANT VR4 WISHBON 99~03
AR-MT-17LANCER (VIRAGE)88~92
AR-MT-18LANCER (VIRAGE) (2WD)93~96
AR-MT-19LANCER (VIRAGE)97~00
AR-MT-20LEGNUM (4WD)98~03
AR-MT-21LANCER FORTIS 2.0 07~UP
AR-MT-22LANCER (VIRAGE)01~06
AR-MT-23OUTLANDER03~06
AR-MT-24GALANT GRUNDER04~UP
Nissan
PART NO.MODELYEAR
AR-NI-01300 ZX Z3289~00
AR-NI-02350 ZX Z33 (2WD)02~08
AR-NI-03370 Z Z34 (2WD)09~UP
AR-NI-04A31 MAXIMA89~94
AR-NI-05A32 MAXIMA95~98
AR-NI-06A33 MAXIMA99~03
AR-NI-07A34 MAXIMA03~08
AR-NI-08ALTIMA (2WD)93~97
AR-NI-09ALTIMA08~UP
AR-NI-10BLUEBIRD06~UP
AR-NI-11LIVINA06~UP
AR-NI-12MARCH K1192~02
AR-NI-13N14 PULSAR (2WD)90~95
AR-NI-14N14 PULSAR GTIR (4WD)90~95
AR-NI-15N15 PULSAR95~00
AR-NI-16N16 PULSAR00~05
AR-NI-17SENTRA B1391~94
AR-NI-18SENTRA B14 95~99
AR-NI-19SENTRA B1500~06
AR-NI-21SILVIA S1389~94
AR-NI-22SILVIA S1495~97
AR-NI-23SILVIA S1598~00
AR-NI-24SKYLINE R32 GTS4 (2WD)89~94
AR-NI-25SKYLINE R32 BNR32 (4WD)89~94
AR-NI-26SKYLINE R33 BCNR33 (4WD)95~98
AR-NI-27SKYLINE R33 GTST (2WD)95~98
AR-NI-28SKYLINE R34 BNR34 (4WD) (RR EYE)99~02
AR-NI-29SKYLINE R34 BNR34 (4WD)  (RR FORK)99~02
AR-NI-30SKYLINE R34 (2WD) (RR EYE)99~02
AR-NI-31SKYLINE R34 (2WD) (RR FORK)99~02
AR-NI-32SKYLINE R35 GTR09~UP
AR-NI-33SKYLINE V3503~06
AR-NI-34SKYLINE V36 (2WD)06~UP
AR-NI-35SYLPHY06~UP
AR-NI-36TEANA J31 4/6 CYL03~08
AR-NI-36-1TEANA J32 4/6 CYL09~UP
AR-NI-37TIIDA  C1106~11
AR-NI-37-1TIIDA / TIIDA GTS11~UP
AR-NI-38X-TRAIL01~07
AR-NI-39QUEST03~09
PORSCHE
PART NO.MODELYEAR
AR-PO-01 997 CARRERA-2/S05~UP
AR-PO-02 CAYMAN (987)05~UP
PROTON
PART NO.MODELYEAR
AR-PR-01 GEN-205~UP
AR-PR-02 SATRIA GTI97~UP
AR-PR-03 WIRA95~UP
ROVER
PART NO.MODELYEAR
AR-RO-01 400 SERIES95~99
AR-RO-02 600 SERIES93~00
<
