> Airsuspension Parts>Compressors>Compressor VIAIR 485C Chrome - Gen.2
Reduced price! Compressor VIAIR 485C Chrome - Gen.2 View larger

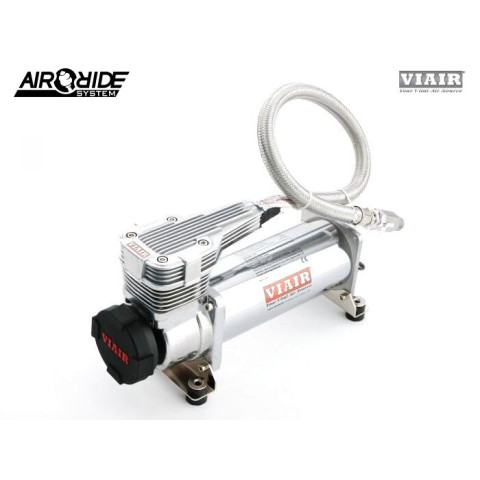

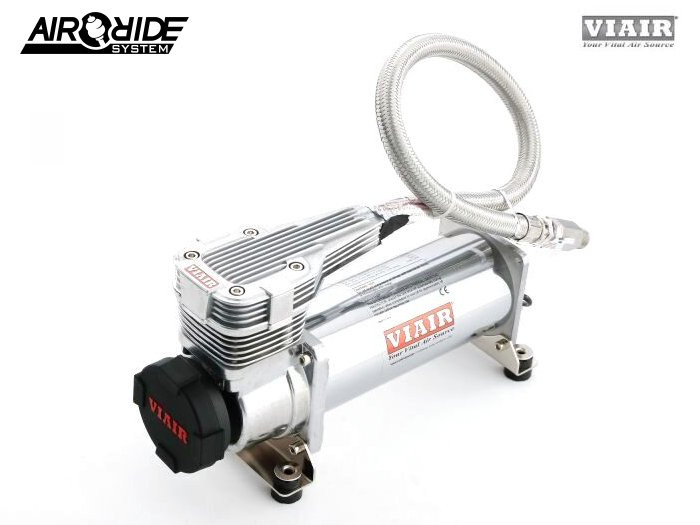

Compressor VIAIR 485C Chrome - Gen.2

48500

378,00 €

418,50 €

-40,50 €

Lowest price in the period of 30 days before current promotion:

The lowest price of the product in day

Lowest price in the last 30 days

Data sheet

TypeSingle

More info

VIAIR 485C Chrome Compressor

VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum/Chrome or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel 3/8" leader hose and an inline check valve.



Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.

Features:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements

Specifications:

– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 200 PSI
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 5.0 Gallon
– Combined Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.63″L x 4.1″W x 6.44″H
– Net Weight: 11.10 lbs.

More info here: https://www.viaircorp.com/c-models/485c-gen-2-compressor

FILL RATES

2.5 Gallon TankFill Rate
0 to 200 PSI4 min. 50 sec. (± 10 sec.)
165 to 200 PSI1 min. 15 sec. (± 05 sec.)
5.0 Gallon TankFill Rate
0 to 200 PSI9 min. 45 sec. (± 15 sec.)
165 to 200 PSI2 min. 25 sec. (± 05 sec.)


Warranty 12 months

Breaking sticker with the serial number of the compressor is void the warranty.

Producer: VIAIR
USA - https://viaircorp.com/pages/contact

Importer: BEST LEVEL Katarzyna Janecka


Manual: https://viaircorp.com/cdn/shop/files/User_Manual_38033_48043_Manual_R2-020221.pdf?v=18014159198691979343

Information and safety instructions:  www.mapet-tuning.com/GPSR/GPSR_airride.pdf
