Air-ride BASIC kit - front/rear

Dedicated to:
Alfa Romeo 159 / Brera



Dedicated for Customer coilover suspension!

Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg


Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.

Custom made for Customer coilover suspension!

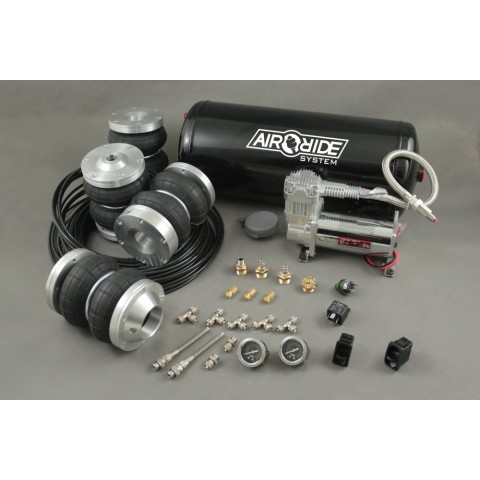

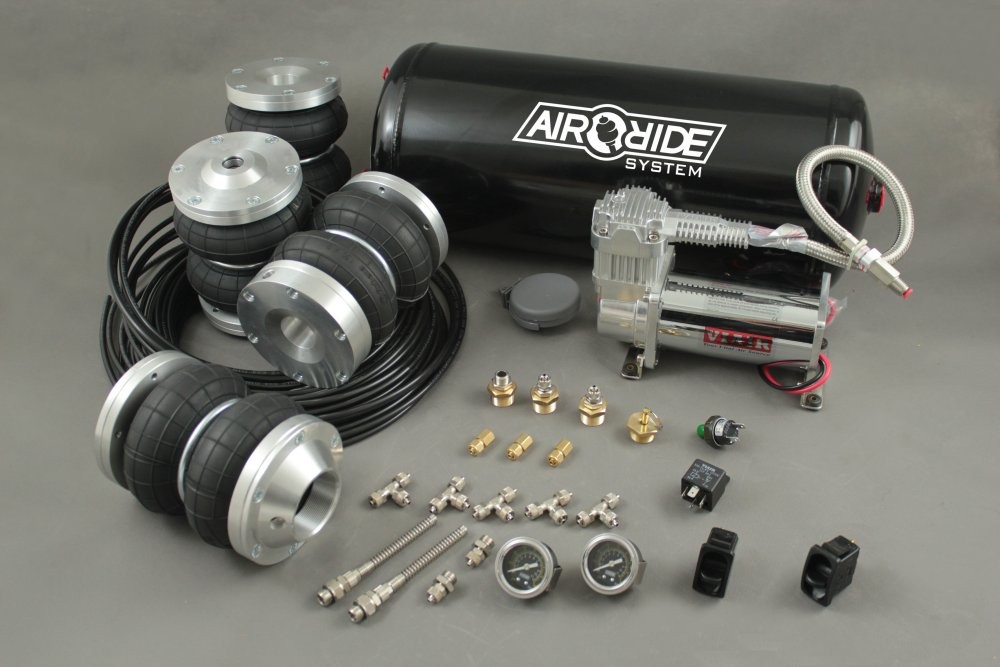

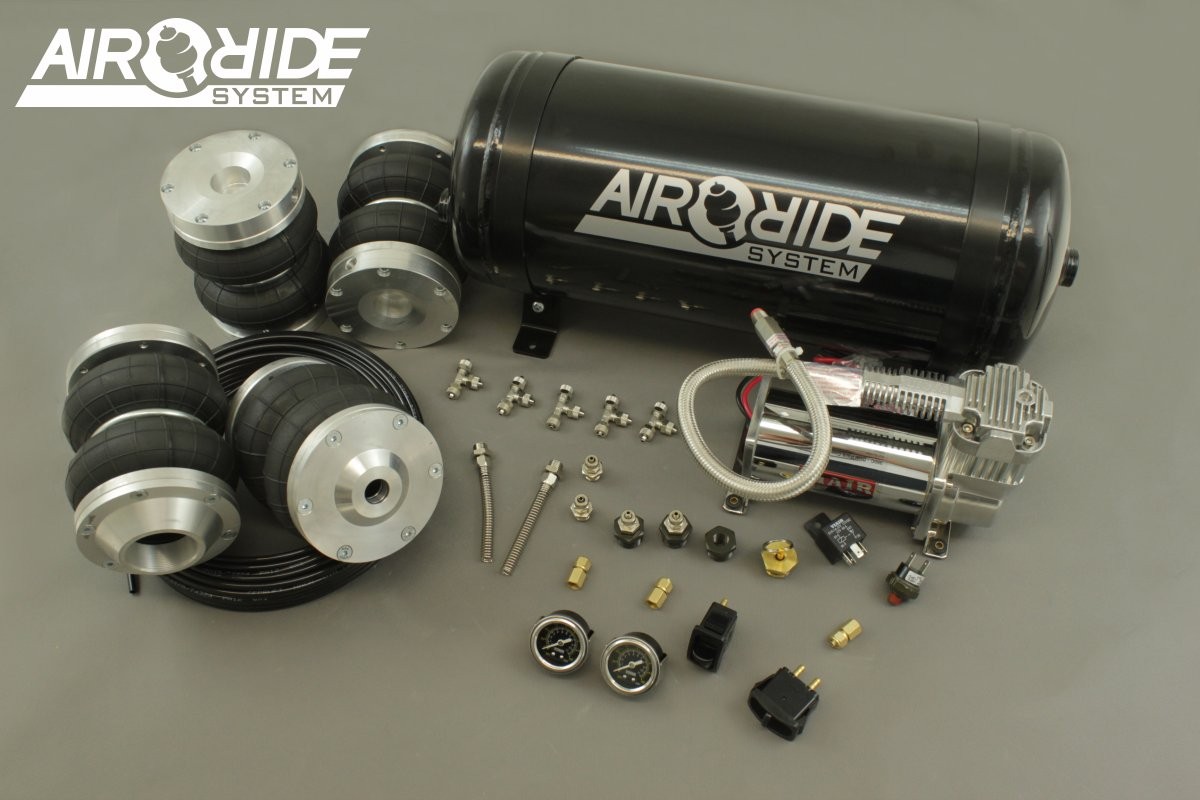

Included:
- 4 complete mounting brackets
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags

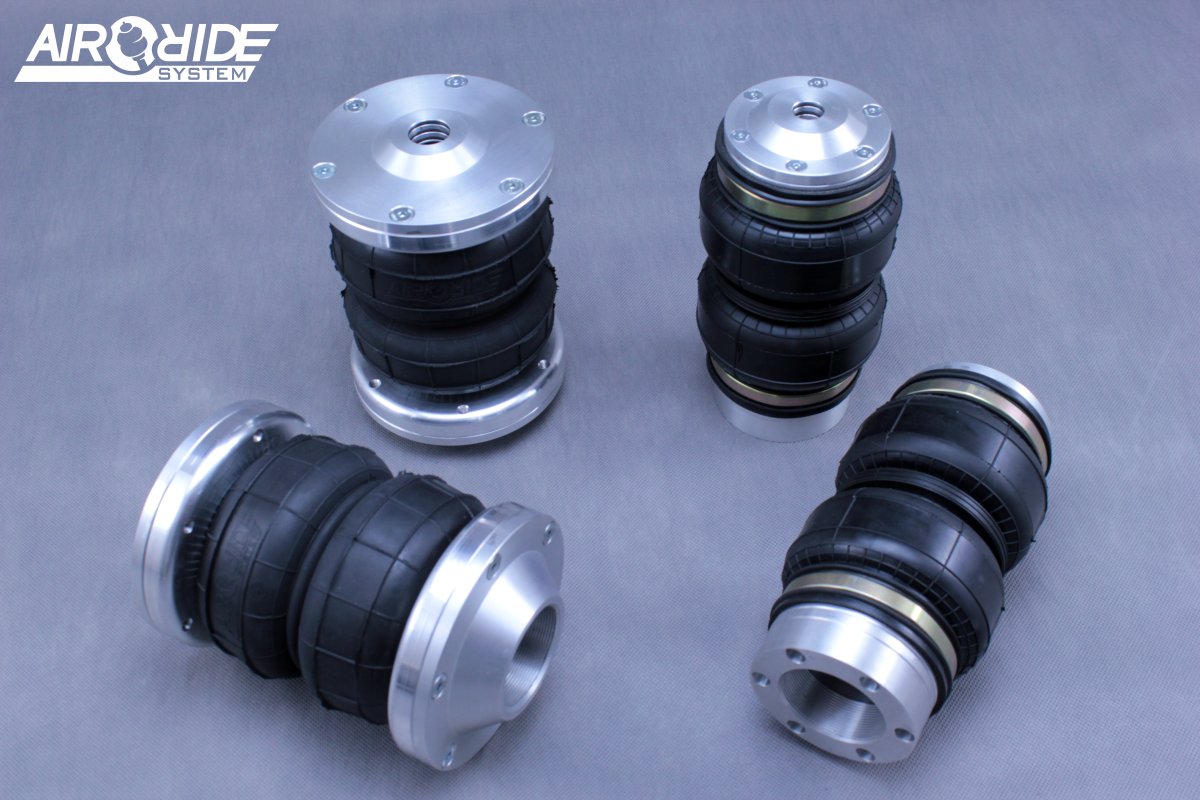

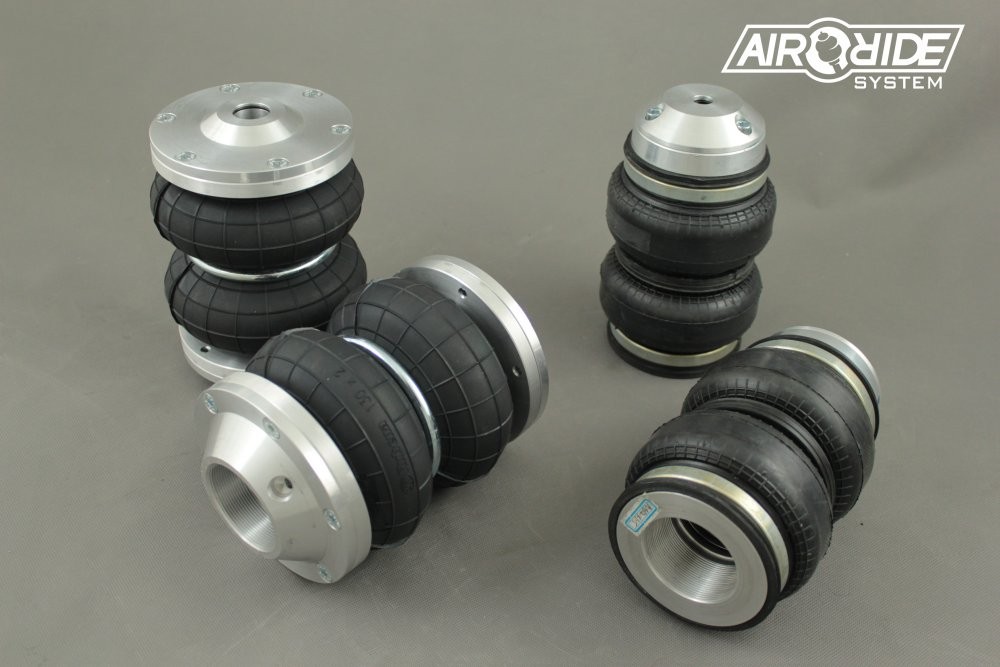

- Bags
- 6mm air hose: 25m
- Other fittings for tank and bags



Other optional features:
- Coilover shock absorbers - the price depends on the brand




Before purchasing ask about availability and waiting time.

air-RIDE sets do NOT have certificates and approvals on public roads.

Recommended by the producer - the pressure in RUBENA bags 130: max 6 bar


illustrative photo!

Movie with English subtitles:


Schematic example:

  • Piston rod diameter (front): 11 mm; 12,45 mm; 15 mm; 16 mm; 18 mm; 20 mm; 22 mm; 25 mm; Other (add info in comments or product configuration)
  • Coilover shock thread size (front): M50x1,5; M52x1,5; M52x2 metric; M52x2 trapezoidal; M52x3 trapezoidal; M53x2; M54x1,5; M55x2; Other (add info in comments or product configuration)
  • Piston rod diameter (rear): 11 mm; 12,45 mm; 15 mm; 16 mm; 18 mm; 20 mm; 22 mm; 25 mm; Other (add info in comments or product configuration)
  • Coilover shock thread size (rear): M50x1,5; M52x1,5; M52x2 metric; M52x2 trapezoidal; M52x3 trapezoidal; M53x2; M54x1,5; M55x2; Other (add info in comments or product configuration)
