air-ride BASIC kit - Mercedes W204

884,00 €

More info

Air-ride BASIC kit - front/rear

Dedicated to:
- Mercedes W204

FWD i 4WD



Dedicated for Customer coilover suspension!
Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg

Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels. Dedicated for Customer coilover suspension!


Included:
- 4 complete mounting brackets
- Dedicated bags
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Front 130/2 ; Rear 130/2 RUBENA bags - multilink or 4,5" bag - twistbeam
- 6mm air hose: 25m
- Other fittings for tank and bags


Other optional features:
- Powder coating bag brackets + 25Euro
- Shortening the front shock absorbers + 120Euro
- Coilover shock absorbers - the price depends on the brand



Important: When You make the order - You have to write the type of rear suspension: multi-link or twist beam!
Before purchasing ask about availability and waiting time.
air-RIDE sets do NOT have certificates and approvals on public roads.
Recommended by the manufacturer - the pressure in the bags 130: max 6 bar



- INFO! To mount the front bags You have to cut the top bearing like on the photo: http://www.mapet-tuning.com/xxx/air/poduszka_mk5.pdf

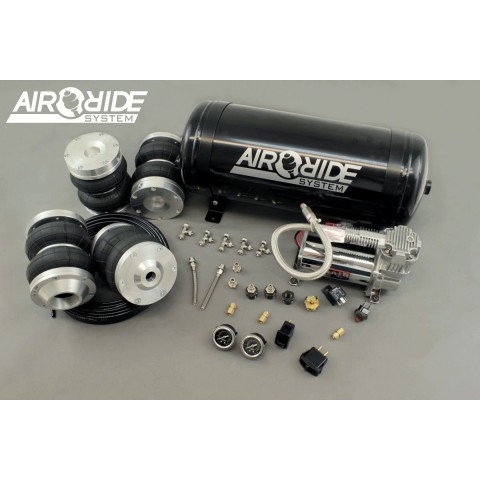

illustrative photo! (no 3rd manometer included)

movie:
http://vimeo.com/43549059

Schematic example:
