air-ride BASIC kit - Alfa Romeo Mito with shocks

BASIC_MITO_gwint

1 248,00 €

More info

Air-ride BASIC kit - front/rear with Shocks

Dedicated to:
- Alfa Romeo Mito
- Fiat Grande Punto / Punto Evo
- Opel Corsa D

just for fwd versions

With shocks TA / MTS


Info:
The basic set is a cheap way to make an air-RIDE. Designed for people who do not care for the show and speed, but want to be able to lie on the ground on the car-show and go up when you ride. The speed of kit is similar to that cars with NIVO systems. Kit allows you to control each axis separately. Infinitely adjustable - you can set the car on different levels.



On the rear for is required shortening bottom pin for the spring to 15mm!

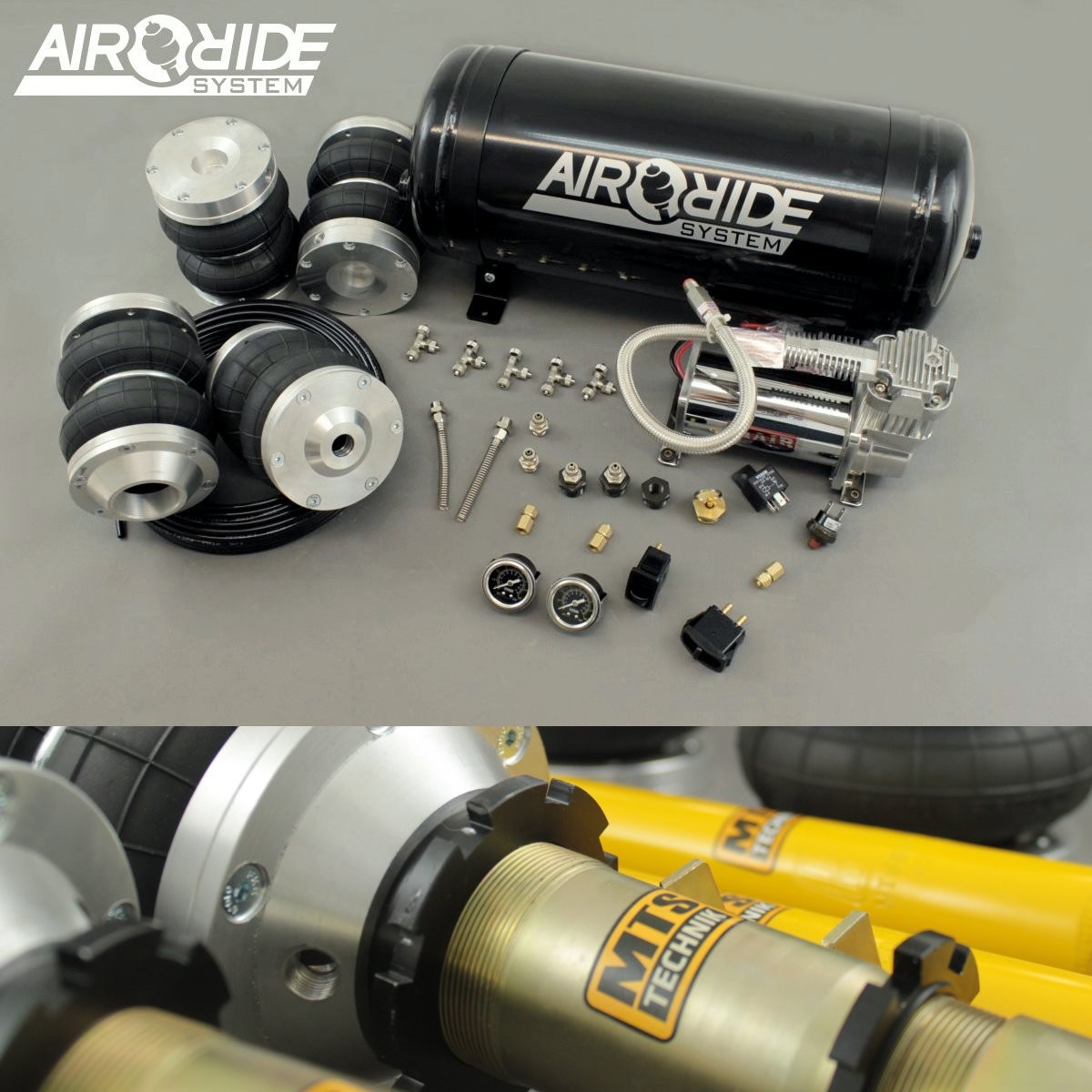

Included:
- 4 complete mounting brackets
- Dedicated bags
- Tank: 15l  (optional other tank and tank brackets)
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: 2x manual AVS pneumatic switch
- Manometers: 2x 1,5" VIAIR (optional for the tank pressure)
- Aluminum Brackets for Bags
- Bags: RUBENA  130/2 (optional others)
- 6mm air hose: 25m
- Other fittings for tank and bags
- 4 shocks

Other optional features:
- Powder coating bag brackets + 25Euro
- Shortening the front shock absorbers + 120Euro



Before purchasing ask about availability and waiting time.
air-RIDE sets do NOT have certificates and approvals on public roads.
Recommended by the producer - the pressure in the bags 130: max 6 bar

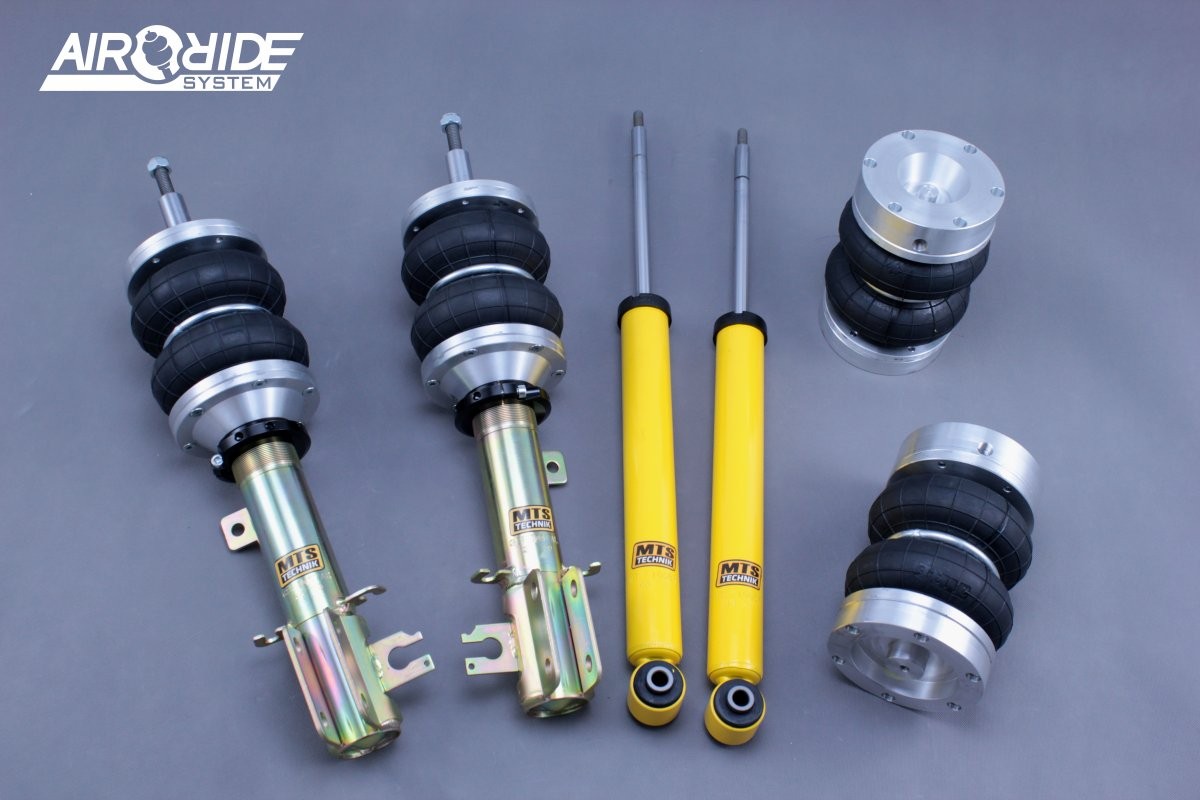

illustrative photo!

movie:
http://vimeo.com/43549059


Schematic example:
