air-ride BEST PRICE kit F/R - Audi A3 8L Quattro + S3 with shocks

BP_F/R_MK4_4x4_gwint

1 612,00 €

Lowest price in the period of 30 days before current promotion:

The lowest price of the product in day

Lowest price in the last 30 days

More info

Air-ride BEST PRICE kit - front/rear

Dedicated to:
Audi A3 Quattro + S3 - 8L
Audi TT 8N Quattro  - 4WD
VW Golf 4 4-motion - 4WD
Skoda Octavia 1 - 4WD
Seat Leon 1M  - 4WD




Info:
The BEST PRICE Front/Rear allows you to control each axle separately. The speed is much faster than in BASIC kit. Infinitely adjustable - you can set the car on different levels.

!!! Rear mounting brackets made that could go down as low as possible:
bottom - flat with a threaded hole for M10 bolt from the bottom
top - with a hole depth of 20mm - You need to cut the pin - spring holder - to 20mm!

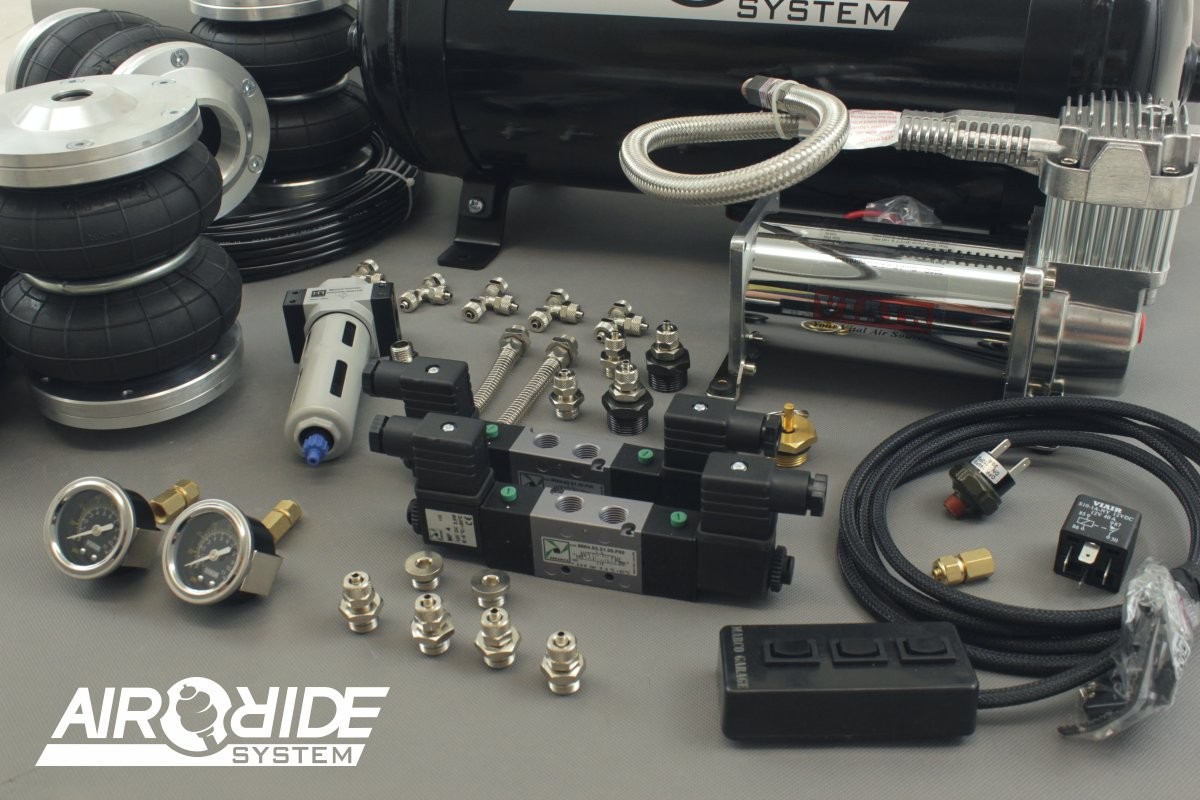

Included:
- Valves 1/4" type 5/3 - 2pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C
- Pressure switch + Relay
- Control: Remote control with 3 buttons
- Manometers: 2x 1,5" VIAIR (optional for the tank)
- Aluminum Brackets for Bags
- Bags
- 6mm air hose: 25m
- Fittings
- Other fittings for tank and bags

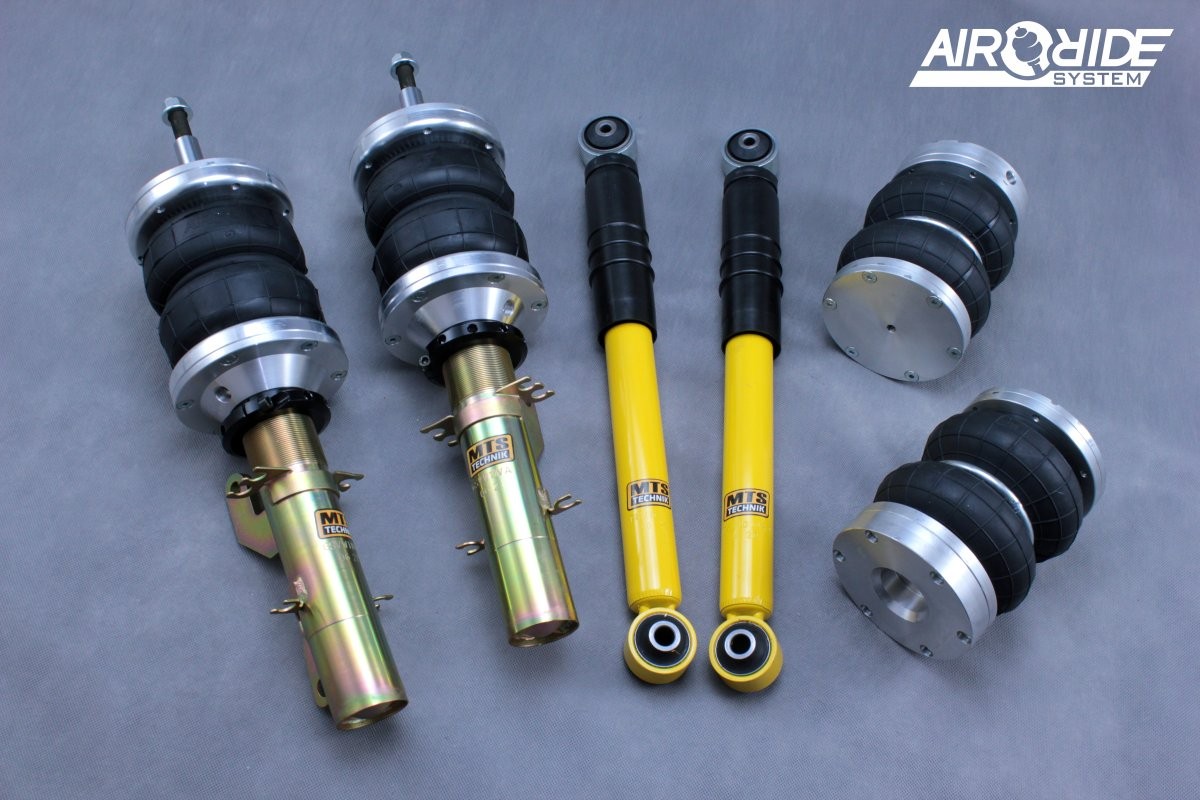

- Shock Absorbers


Other optional features:
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers



Before purchasing ask about availability and waiting time.

air-RIDE sets do NOT have certificates and approvals on public roads.

Recommended by the producer - the pressure in RUBENA bags 130: max 6 bar

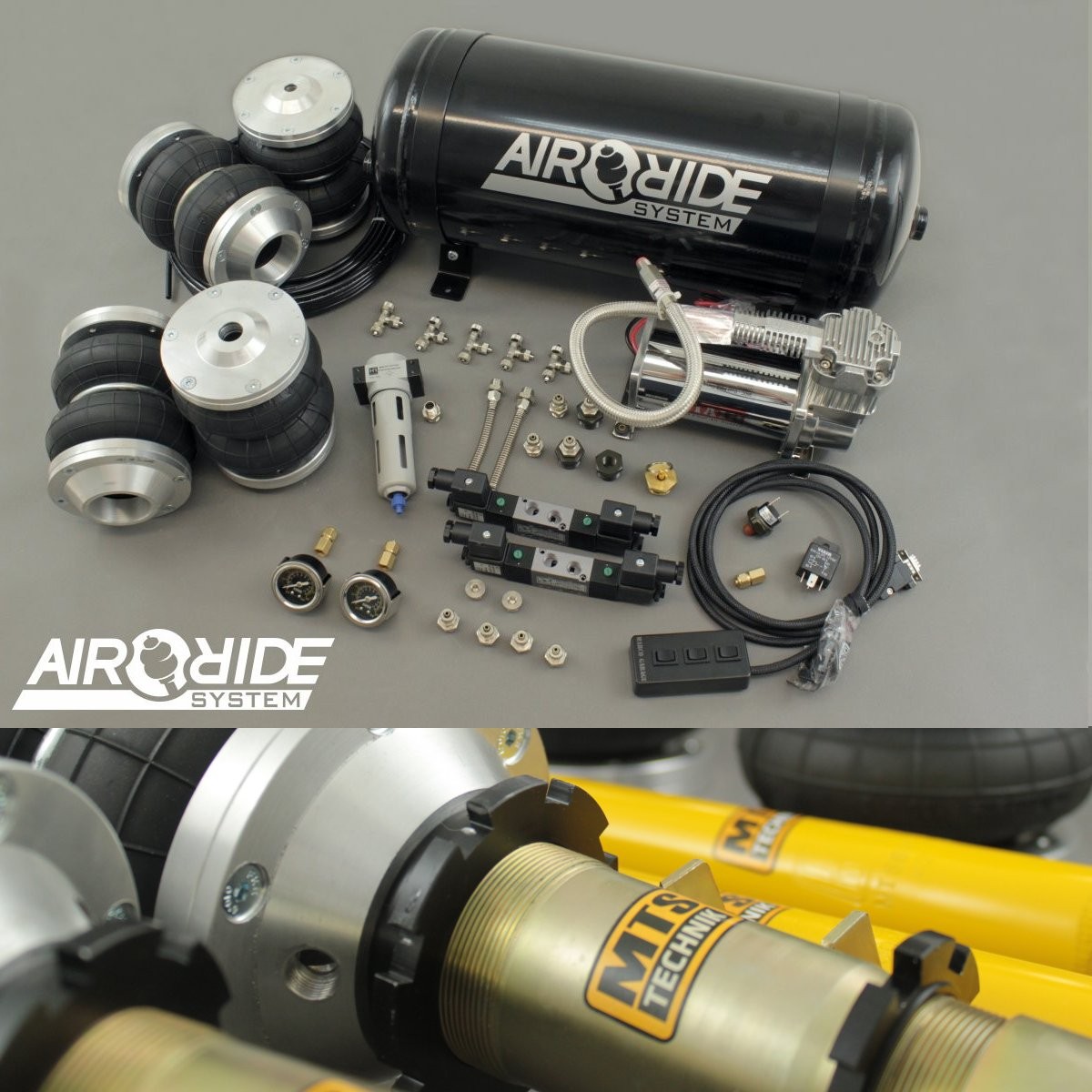

illustrative photo!

Movie with English subtitles:


Schematic example:
