air-ride BEST PRICE kit VIP 4-way - Chrysler 300C

BP_VIP_300C

1 482,00 €

More info

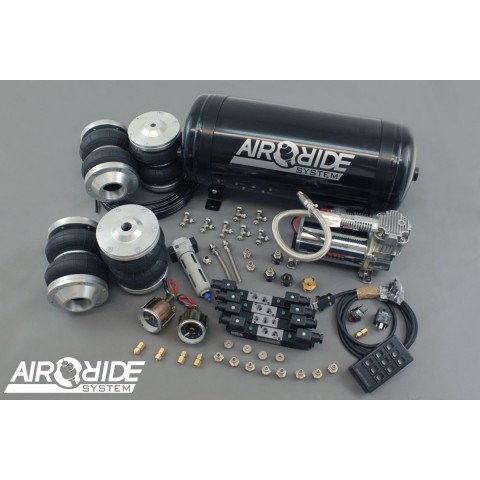

Air-ride BEST PRICE VIP 4-way kit

Dedicated to:

- Chrysler 300C LX
- Dodge Magnum

2004-2012

Not for 4x4


Dedicated for Customer coilover suspension!
Dimensions needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg

Info:
The BEST PRICE VIP kit allows you to control each bag separately. The speed is much faster than in BASIC kit. Each airspring has own valve - there is no any flow of air between the bags!
Infinitely adjustable - you can set the car on different levels. Dedicated for Customer coilover suspension!


Included:
- Valves 1/4" type 5/3 - 4pcs
- Tank: 15l  (optional other tank and tank brackets)
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 9 buttons
- Manometers: 2x DUAL 2" VIAIR (optional for the tank)
- Aluminum Brackets for Bags

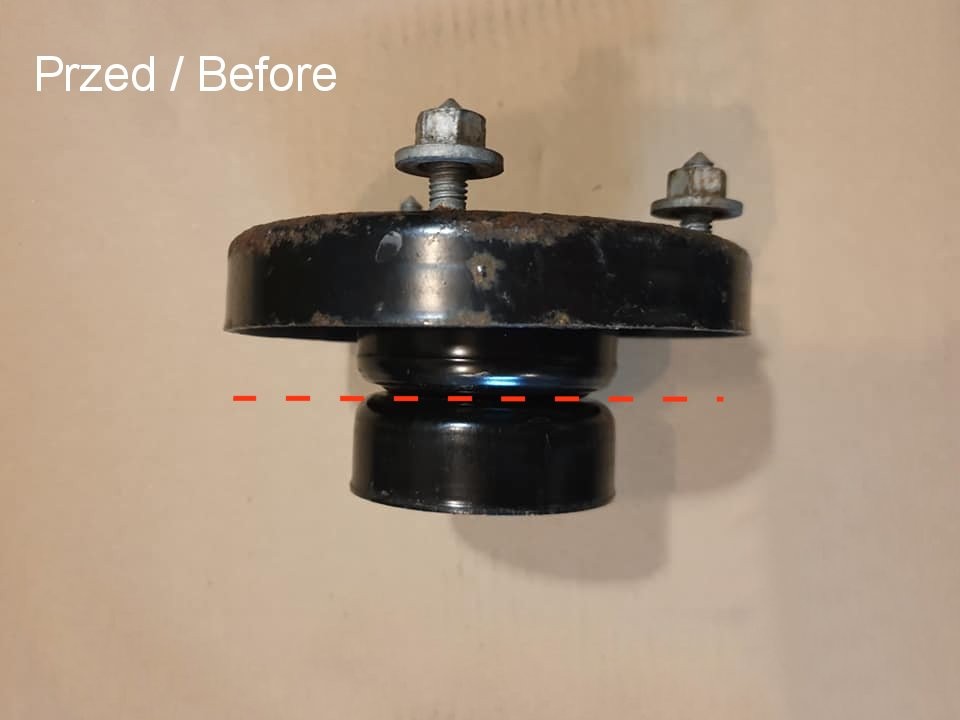

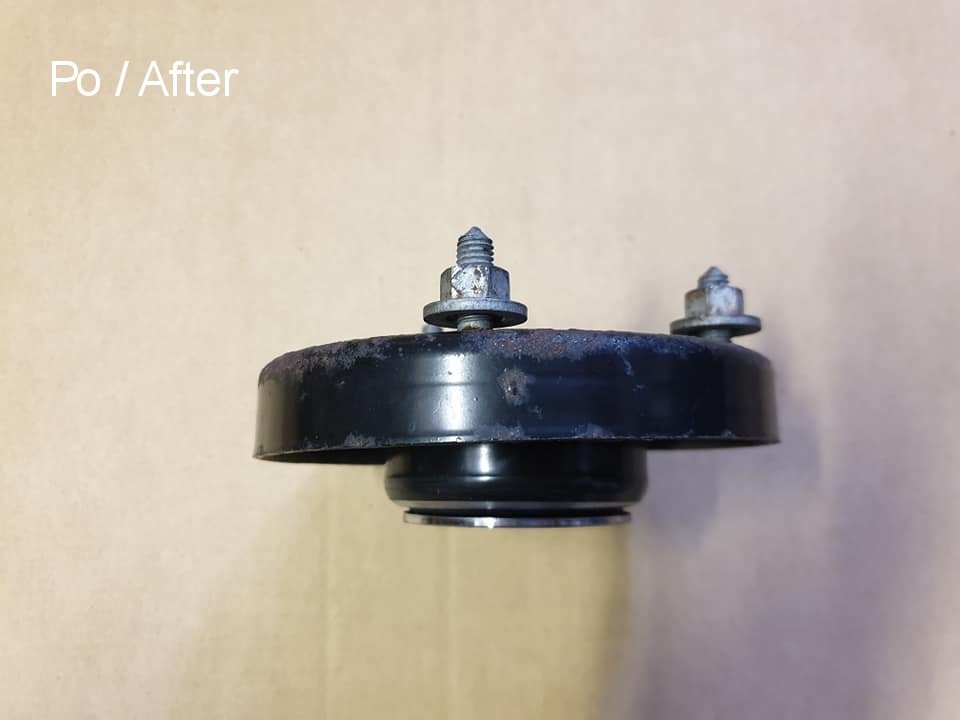

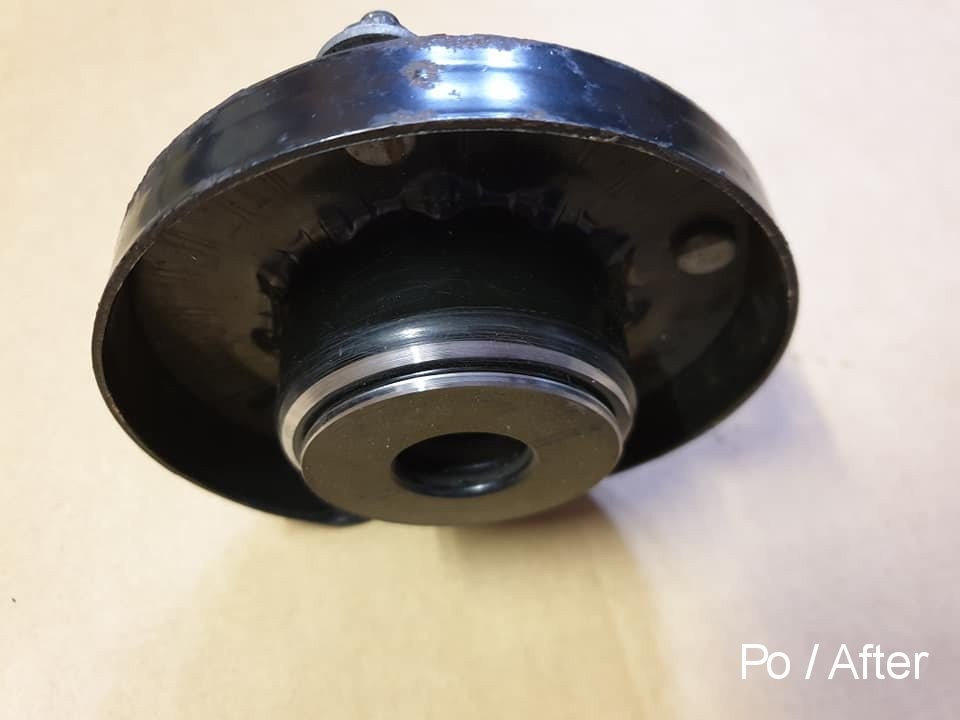

- WARNING ! To mount the front bags You have to cut the oem top bearing like in the photos

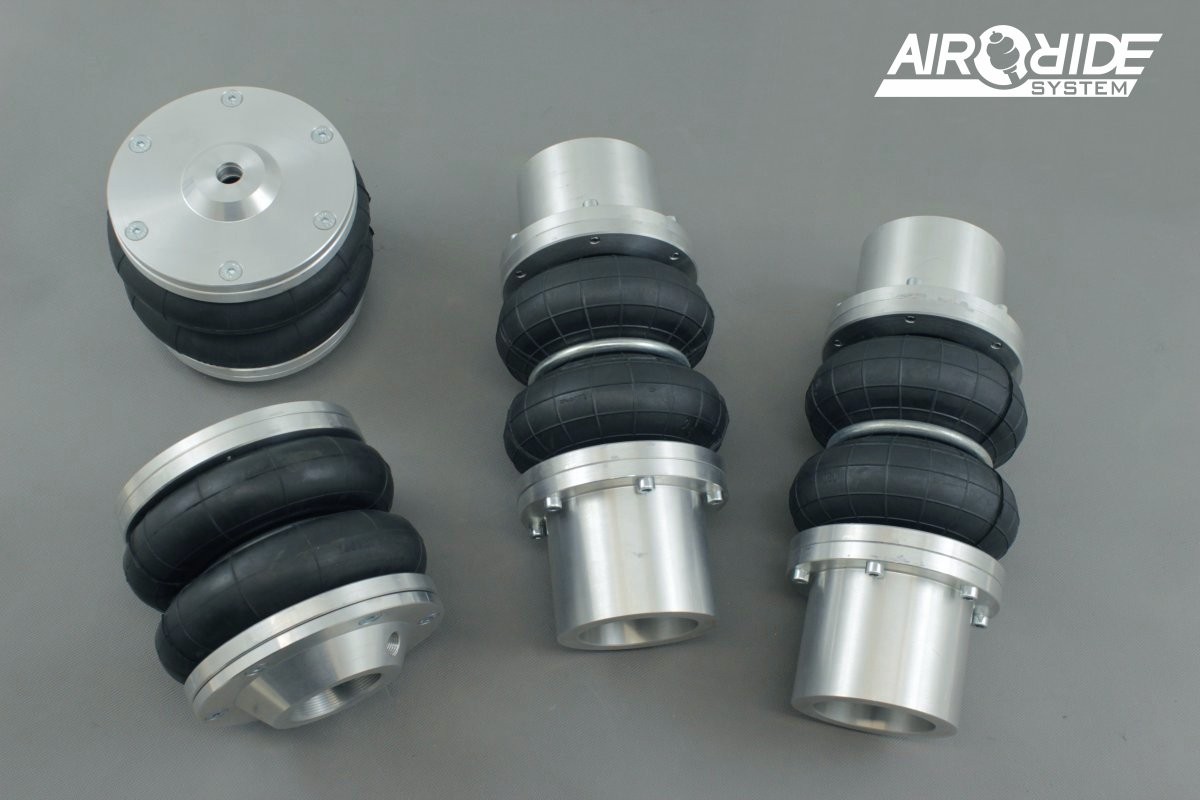

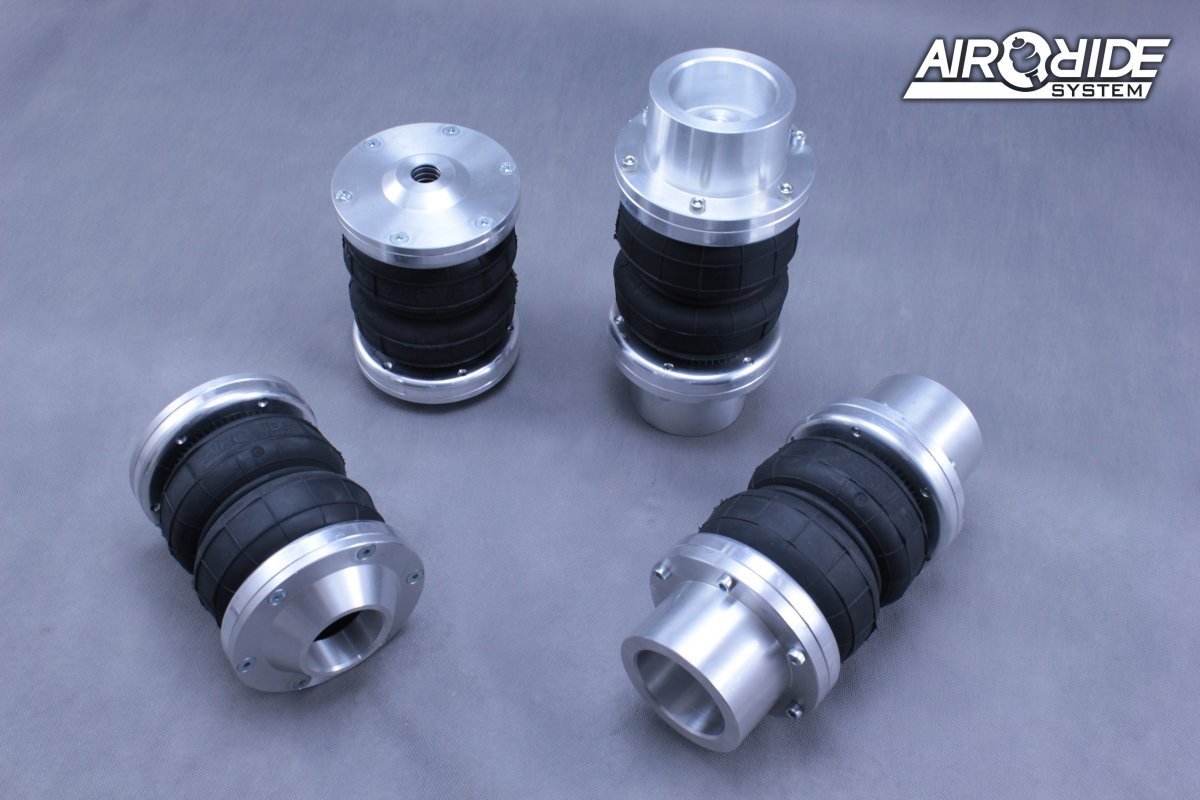

- Dedicated bags: 6" front and 130/2 rear (optional others)
- 6mm air hose: 30m
- Fittings
- Other fittings for tank and bags

Other optional features:
- Powder coating bag brackets + 25Euro
- Shortening the front shock absorbers + 120Euro
- Coilover shock absorbers - the price depends on the brand




Before purchasing ask about availability and waiting time.
air-RIDE sets do NOT have certificates and approvals on public roads.
Recommended by the producer - the pressure in the bags 130: max 6 bar

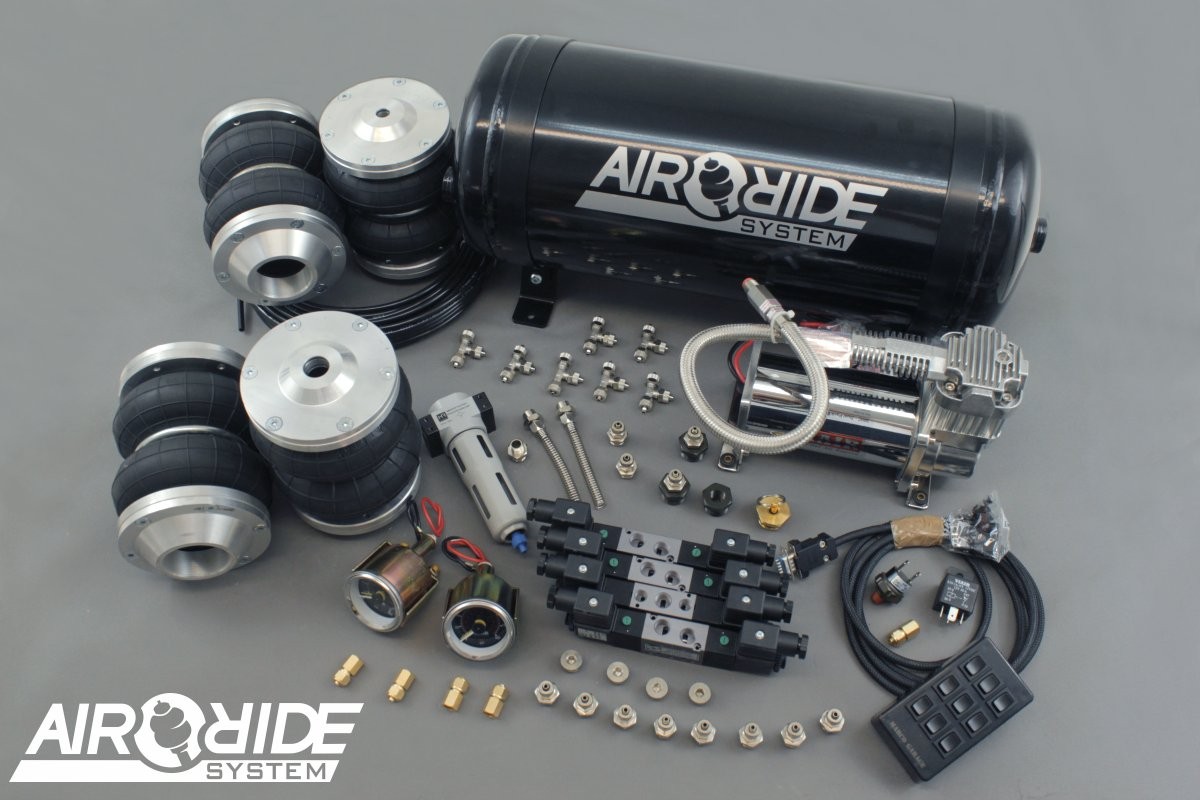

illustrative photo!

Schematic example:
