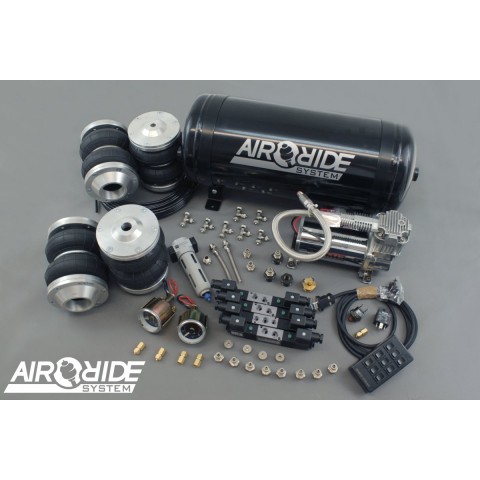

air-ride BEST PRICE kit VIP 4-way - VW Golf 4 4-motion - 4WD

1 508,00 €

Lowest price in the period of 30 days before current promotion:

The lowest price of the product in day

Lowest price in the last 30 days

More info

Air-ride BEST PRICE VIP 4-way kit

Dedicated to:

Audi A3 Quattro + S3 - 8L
Audi TT 8N Quattro  - 4WD
VW Golf 4 4-motion - 4WD
Skoda Octavia 1 - 4WD
Seat Leon 1M  - 4WD


just for 4wd versions

Dedicated for Customer coilover suspension!

Measurements needed: http://www.mapet-tuning.com/xxx/air/coilover-pomiar.jpg




Info:
The BEST PRICE VIP kit allows you to control each bag separately. The speed is much faster than in BASIC kit. Each airspring has own valve - there is no any flow of air between the bags! Infinitely adjustable - you can set the car on different levels.

Dedicated for Customer coilover suspension!

!!! Rear mounting brackets made that could go down as low as possible:
bottom - flat with a threaded hole for M10 bolt from the bottom
top - with a hole depth of 20mm - including the need to reduce the pin on the car to 20mm!



Included:

- Valves 1/4" type 5/3 - 4pcs
- Tank: 15l
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Control: Remote control with 9 buttons
- Manometers: 2x DUAL 2" VIAIR (optional for the tank)
- Aluminum Brackets for Bags
- Dedicated bags
- 6mm air hose: 25m
- Other fittings for tank and bags


Other optional features:
- Camber Plates Front (gives the possibility of adjusting the angle and car can go a little lower)
- Shortening the front shock absorbers
- Coilover shock absorbers - the price depends on the brand




Before purchasing ask about availability and waiting time.

air-RIDE sets do NOT have certificates and approvals on public roads.

Recommended by the producer - the pressure in RUBENA bags 130: max 6 bar

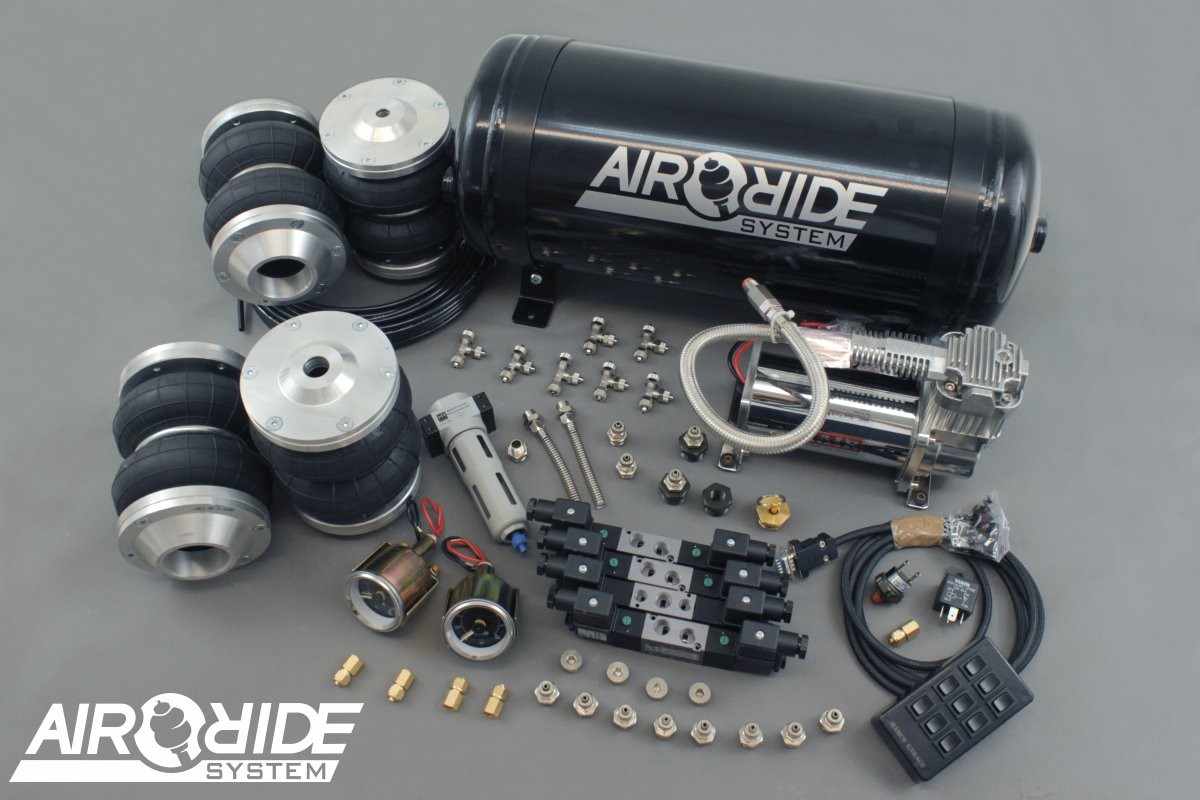

illustrative photo!

Schematic example:
